Product Name: JR-YS-02 Cast Steel Y Strainer DIN

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The ¡°Y¡± strainers are suitable to retain and collect any impurity from the pipeline. The cast steel ¡°Y¡± strainers are manufactured in cast steel GS-C25 according to DIN standard, for industrial applications. The basket screen made in stainless steel 304 or 316 is removable for its cleaning.
Design & manufacture: DIN
Face to face: DIN 3202 F1
Flange ends: DIN 2531-2545
Test & inspection: API 598

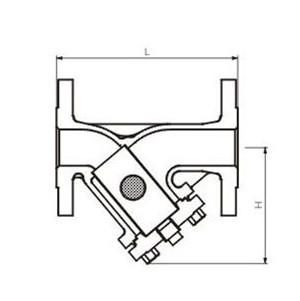

DN
L mm
H mm
Weight kg
PN 16
15
130
85
2.8
20
150
95
3.8
25
160
110
5.3
32
180
125
7.3
40
200
145
9.0
50
230
155
11.8
65
290
170
16.2
80
310
205
20.4
100
350
230
35.0
125
400
270
45.4
150
480
318
62.0
200
600
400
132.0
250
730
555
220.0
300
850
620
330.0
350
980
700
540.0
400
1100
820
830.0

Body & Bonnet
GS-C25(N), 1.4308, 1.4408
Screen
F304, F304, F316
Gasket
Graphite + SS304, Graphite + SS316
Bolt/nut
B7/2H, B8/8, B8M/8M

Mesh
Water
20-40 mesh
Gas
40-100 mesh
Oil
10-160 mesh
