PRODUCT >> Valves >> Strainer

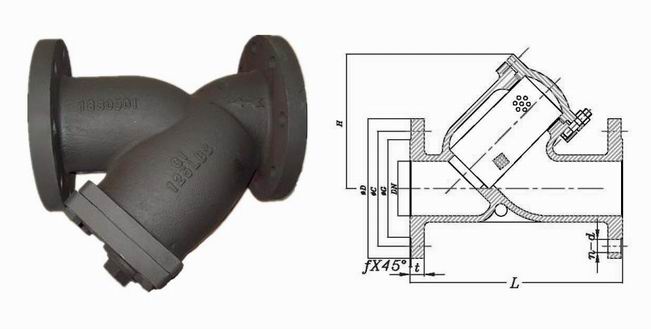

Product Name: JR-YS-03 Cast Iron Y Strainer API

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The ¡°Y¡± strainers are suitable to retain and collect any impurity from the pipeline. The cast iron ¡°Y¡± strainers are manufactured in cast iron GG25 according to API, ANSI standard, for industrial applications. The basket screen made in stainless steel 304 or 316 is removable for its cleaning.
Design & manufacture: API
Flange ends: ANSI B16.10
BW ends: ANSI B16.5
Test & inspection: API 598

DN
D mm
L mm
H mm
Weight kg
125/150 lbs
50
152
230
220
-
65
178
290
290
-
80
191
310
310
-
100
229
350
360
-
125
254
400
430
-
150
279
480
550
-
200
343
600
620
-
250
406
730
700
-
300
483
850
800
-

Body & Bonnet
Ductile Iron, Cast Iron
Screen
Stainless Steel F304, F304, F316
Gasket
Graphite, Teflon
Plug
Ductile Iron, Cast Iron
