PRODUCT >> Valves >> Check
Product Name: JR-CK-06 Swing Check Valve BS 5163

   SPECIFICATION/SPECIAL FEATURES

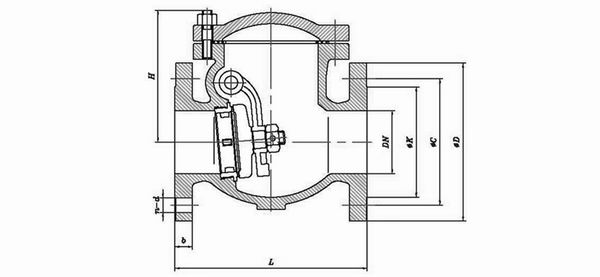

Click for technic details

BS standard swing check valves in cast iron PN 16 and 25 are manufactured in cast iron with ductile iron disc and sealing face in bronze. They are installed for water, steam, gas, oil.

Design & manufacture: BS 5153
Face to face: ANSI B16.10
Flanged ends: ISO7005-2 PN10/PN16/PN25

Body & Bonnet
Cast Iron, Ductile Iron
Disc
Ductile Iron
Sealing face
Bronze

DN
L mm
H mm
D mm
Weight kg
50
203
120
152
14
65
216
135
178
17
80
241
148
191
24
100
292
180
229
35
125
330
205
254
50
150
356
230
279
65
200
495
258
343
113
250
622
391
406
210
300
698
427
483
320
350
787
561
533
450
400
914
582
597
502
450
965
630
635
565
500
978
708
699
624
600
1295
800
813
1510
