PRODUCT >> Valves >> Check
Product Name: JR-CK-16 Butterfly Swing Check Valve with counterweight

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The butterfly check valves with counterweight are very reliable as they can regulate the closing time of the valve. These valves are applied in pipelines as non-return device, with flow allowed in one direction only. The butterfly check valves with counterweight are double eccentric type with tilting disc, the counterweight lever will facilitate the anti-hammer device. Epoxy coated inside and outside, the double flanged butterfly valves can be installed in drinking water plants. NBR gasket seals are on the disc and can be replaced without dismantling the valves from the pipeline.

Face to face length: EN 558-1, series 14. DIN 3202 F4
Flange: UNI EN 1092-1 PN10/PN16/PN25

Body
Cast Iron, Ductile Iron
Disc
Cast Iron, Ductile Iron
Sealing face
Brass/Stainless Steel
Shaft
Stainless Steel
Balance weight
Cast Iron

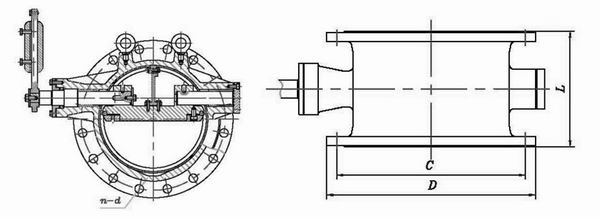

DN
L mm
D mm
C mm
100
190
220
180
125
200
250
210
150
210
285
240
200
230
340
295
250
250
405/395
355/350
300
270
460/445
410/400
350
290
520/505
470/460
400
310
580/565
525/515
450
330
640/615
585/565
500
350
715/670
650/620
