PRODUCT >> Valves >> Butterfly
Product Name: JR-BT-08 F101 Wafer Type Butterfly

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

Design & manufacture: MSS SP-67, BS 5155, API 609
Wafer Type compatible with ANSI, DIN, BS, JIS flanges
Applicable Temperature: -40¡æ to 200¡æ
Lever Operated for size from 1 1/2¡± to 12¡±; Manual gear operated for size from 1 1/2¡± to 48¡±; Electric/pneumatic actuators for size from 1 1/2¡± to 48¡±

Body
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Disc
Ductile Iron, Stainless Steel, Al-bronze
Shaft
Zinc plated Steel, Stainless Steel
Seat
NBR, EPDM, PTFE, Viton, Neoprene

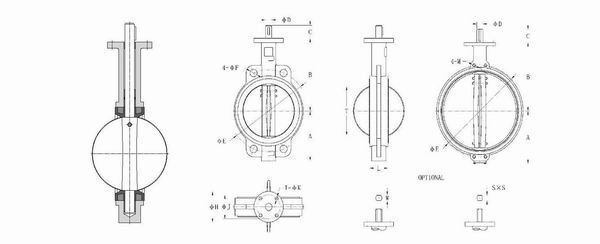

Size
A mm
B mm
C mm
D mm
E mm
PN10
40
70
145
32
12.7
110
50
76
162
32
12.7
125
65
89
174
32
12.7
145
80
95
181
32
12.7
160
100
114
200
32
15.9
180
125
127
213
32
19.1
210
150
139
225
32
19.1
240
200
177
260
38
22.2
295
250
203
292
38
28.6
350
300
242
337
38
31.8
400
350
277
368
45
31.8
460
400
308
400
51
33.3
515
450
342
422
51
38.1
565
500
374
479
64
41.3
620
600
459
562
70
50.8
725
700
520
624
72
55
840
750
545
650
72
55
900
800
575
672
72
55
950
900
635
768
77
75
1050
1000
685
823
85
85
1160
1200
839
940
150
92
1380
