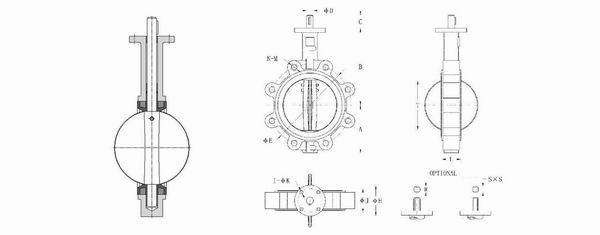

Product Name: JR-BT-09 F101 Lug Type Butterfly Valve

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

The lug butterfly valves are widely applied, thanks to their multiple functions of regulation and on-off valves and they are a good solution whenever required compact dimensions and reduced weight. Thanks to the EPDM gasket and to the epoxy coating, the lug butterfly valves can be installed in drinking water plants. The lug butterfly valves are manufactured as centric type disc, they can stand both directions of fluid and are maintenance-free. The lug butterfly valves can be installed between welding neck flanges EN PN 10-16 and ANSI #150, without any need of additional flange gaskets. Such valves can be installed in any position. The lug butterfly valves come with lever (standard execution); reducing gear, pneumatic operator with single or double effect, electric actuator on request.

Design & manufacture: MSS SP-67, BS 5155, API 609
Lug Type compatible with ANSI, DIN, BS, JIS flanges
Applicable Temperature: -40¡æ to 200¡æ
Lever Operated for size from 1 1/2¡± to 12¡±; Manual gear operated for size from 1 1/2¡± to 48¡±; Electric/pneumatic actuators for size from 1 1/2¡± to 48¡±

Body
Cast Iron, Ductile Iron, Stainless Steel, Carbon Steel
Disc
Ductile Iron, Stainless Steel, Al-bronze
Shaft
Zinc plated Steel, Stainless Steel
Seat
NBR, EPDM, PTFE, Viton, Neoprene

Size
A mm
B mm
C mm
D mm
E mm
PN10
40
70
145
32
12.7
110
50
76
162
32
12.7
125
65
89
174
32
12.7
145
80
95
181
32
12.7
160
100
114
200
32
15.9
180
125
127
213
32
19.1
210
150
139
225
32
19.1
240
200
177
260
38
22.2
295
250
203
292
38
28.6
350
300
242
337
38
31.8
400
350
277
368
45
31.8
460
400
308
400
51
33.3
515
450
342
422
51
38.1
565
500
374
479
64
41.3
620
600
459
562
70
50.8
725
700
520
624
72
55
840
750
545
650
72
55
900
800
575
672
72
55
950
900
635
768
77
75
1050
1000
685
823
85
85
1160
1200
839
940
150
92
1380
