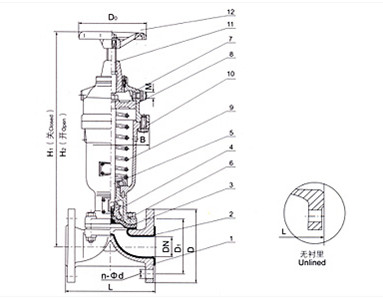

Product Name: JR-DM-07 Pneumatic Operated Fluorine Plastic Lined Diaphragm Valve Normally Open

   SPECIFICATION/SPECIAL FEATURES

Click for technic details

It is special for controlling the noncorrosive or the strong corrosive media. Its body inner surface is unlined or lined with different fluorine plastics which can be selected to suit with different working temperatures and fluid pipelines.
Suitable temperature: ¡Ü85¡æ, ¡Ü100¡æ, ¡Ü120¡æ, ¡Ü150¡æ according to the materials of lining and diaphragm

Design & manufacture: GB 12239
Face to face: GB 12221, JB1688
Flanged ends: GB4216, JB78
Test for lining layer: Electro spark detecting
Test: GB/T 13927

Body & Bonnet
Cast Iron, Carbon Steel, Stainless Steel
Lining
Unlined, Fluorine Plastic
Diaphragm
Fluorine Plastic
Disc
Cast Iron, Stainless Steel
Stem
Carbon Steel, Stainless Steel

DN
L mm
D mm
D1 mm
D0 mm
Z-¦Õd
H mm
Air Joint in
Weight kg
15
125
95
65

4-¦Õ14



20
139
105
75

4-¦Õ14



25
145
115
85
120
4-¦Õ14
306
10x1
7.5
32
160
140
100
140
4-¦Õ18

12x1.25
14.5
40
180
150
110
140
4-¦Õ18
415
12x1.25
16
50
210
165
125
160
4-¦Õ18
643
12x1.25
24.5
65
250
185
145
160
4-¦Õ18


30
80
300
200
160
200
4-¦Õ18
627
16x1.5
51.5
100
350
220
180
240
8-¦Õ18
719
16x1.5
86.5
125
400
250
210
320
8-¦Õ18
804
20x1.5
133
150
460
285
240
320
8-¦Õ22
920
20x1.5
196.5
200
570
340
295
400
8-¦Õ22
1145
20x1.5
279.5
250
680
395
350

12-¦Õ22
