Product Name: JR-GL-01 Globe Valve |
|
|
| |
|
| SPECIFICATION/SPECIAL FEATURES |
Click for technic details
Design: BS 1873, ASME B16.34
Face to face: ASME B16.10
Flange ends: ASME B16.5
BW ends: ASME B 16.25
Test: API 598
Manufacturing to NACE MR 01-75 on request
|

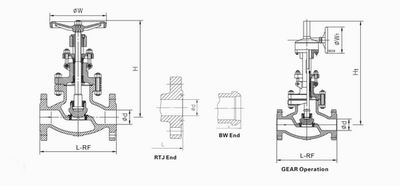

DN |
L mm. |
H mm. |
W mm. |
Weight kg. |
|
150lbs |
|
1/2¡± |
108 |
185 |
100 |
4 |
|
3/4¡± |
117 |
190 |
100 |
4.5 |
|
1¡± |
127 |
211 |
100 |
5.5 |
|
1 1/4¡± |
140 |
220 |
135 |
8.5 |
|
1 1/2¡± |
165 |
240 |
135 |
12 |
|
2" |
203 |
328 |
200 |
18 |
|
2 1/2¡± |
216 |
360 |
250 |
26 |
|
3" |
241 |
373 |
280 |
43 |
|
4" |
292 |
400 |
300 |
54 |
|
5¡± |
356 |
435 |
350 |
71 |
|
6" |
406 |
528 |
350 |
95 |
|
8" |
495 |
680 |
400 |
160 |
|
10" |
622 |
775 |
450 |
299 |
|
12" |
698 |
880 |
500 |
373 |
|
14¡± |
787 |
- |
- |
- |
|
16¡± |
914 |
- |
- |
- |
|
20¡± |
978 |
- |
- |
- |
|
24¡± |
1295 |
- |
- |
- |
|
body - bonnet |
Cast steel A216WCB, A352 LCB, Alloy steel A217 WC1, WC6, WC9, C5, Stainless steel A351 CF8, CF8M, CF3, CF3M |
|
stem |
A182 F6, A182 F304, F316, Monel |
|
body seat facing |
A182 F6, A182 F304, F316, Monel |
|
disc seat facing |
A182 F6, A182 F304, F316, Monel |
|
gasket |
SS spring wound W/graphite, PTFE |
|
|
|
