Design & manufacture: BS 5351
Socket weld ends: ANSI B16.11
Screw ends: ANSI B16.11
Inspection and test: API 598
Face to face: manufacture¡¯s standard
|
Body & Bonnet |
Carbon Steel A105(N), Stainless Steel F304(L), F316(L) |
|
Ball |
F410, F304(L), F316(L) |
|
Stem |
F410, F304(L), F316(L) |
|
Sealing Ring |
|
|

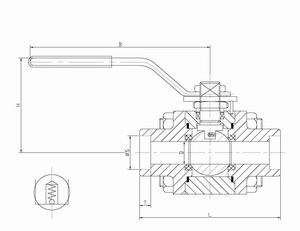

Size |
L mm |
H mm |
B mm |
Weight kg |
|
1/4¡± |
92 |
70 |
125 |
2.5 |
|
3/8¡± |
92 |
70 |
125 |
2.4 |
|
1/2¡± |
92 |
70 |
125 |
2.3 |
|
3/4¡± |
111 |
80 |
215 |
3.4 |
|
1¡± |
127 |
80 |
215 |
5.4 |
|
1 1/4¡± |
140 |
105 |
250 |
6.4 |
|
1 1/2¡± |
152 |
105 |
250 |
11.0 |
|
2¡± |
152 |
115 |
290 |
13.0 |
